GND is the most important designation in the circuit, against which all others are measured. This is the “ground”, zero potential, a common wire for power and signal. In English, ground is earth, hence the abbreviation GND. Other notations show the . Tingnan ang higit pa
0v. If mixed analog and digital circuits are used, then separate signal power lines for the analog and digital parts are indicated. In this case, you can find the following notation: 1. GNDD, DGND – for digital; 2. AGND, GNDA – for analog. For digital logic . Tingnan ang higit pa

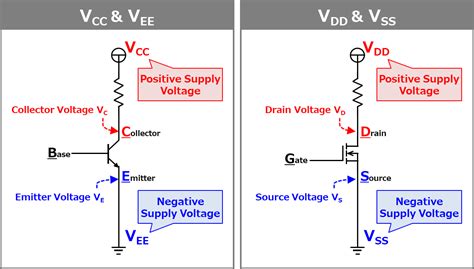

Many people are interested in what role GND plays on the motherboard or radio circuit and what it is all about. Literally, it is “earth”. . Tingnan ang higit pa The meanings and differences of V CC, V EE, V DD, and V SS used in the supply voltage are shown below. V CC V CC is used as the positive supply voltage for circuits using a bipolar transistor (BJT).
Vcc What is Vcc? Definition. The supply voltage for a circuit is often given as V plus a double-letter suffix. The double letter is usually related to the lead of the transistors that .VCC, short for “Voltage at the Common Collector,” refers to the positive voltage source in a circuit. It is also known as the supply voltage or the positive source voltage. It is . If the same letter is repeated, that means a power supply voltage: Vcc is the (positive) power-supply voltage associated with the collector, and Vee is the . The terms VCC, VEE, VDD, and VSS are used in relation to power supply voltages. Here are their meanings and differences. VCC • VCC is used as the positive . Vcc = Collector supply voltage, Vee = Emitter supply, Vbb= Base supply voltage, Vdd = Drain supply, Vss = source supply. Whenever the supply to a Transistor (or TTL IC circuit) is connected . VCC, also known as Voltage Common Collector, serves a critical function in electronics by providing the necessary power supply voltage to operate various .
V CC of a bipolar junction transistor is the DC voltage that is supplied to the collector of the transistor. V CC is a very important voltage when biasing the transistor because it determines how much the AC signal can be .
vcc electrical meaning In the field effect transistor (or COMS device), VDD is the drain, VSS is the source, VDD and VSS refer to the component pins, not the power supply voltage. Generally speaking, VCC=analog power .Sep 11, 2016 at 0:18. @BenVoigt - Your probing plan is a good one. Too bad the LPCC chip is very difficult to probe. I would suggest just applying a DC voltage between +2.2 to +3.6 to "Vin". If the is a regulator on-board, no harm will result. If it is a direct run with no regulator, the magnetometer will come to life. – glen_geek.vcc and vdd meaning Vcc = Collector supply voltage, Vee = Emitter supply, Vbb= Base supply voltage, Vdd = Drain supply, Vss = source supply. Whenever the supply to a Transistor (or TTL IC circuit) is connected between the .Double letters (cc) refer to power supply voltages. For example, Vee refers to the "emitter" voltage. In CMOS logic, Vss refers to the "source" voltage, and Vdd is the "drain" voltage. Single .
The strict meaning of these has been lost among a growing number of people, and hence you will often see Vcc used as the positive supply in CMOS circuits and see Vdd in BJT circuits. In many circuits, Vss/Vee is the same as the ground node, in which case it may or may not ever be noted as being Vss or Vee.
VCC of a bipolar junction transistor is the DC voltage that is supplied to the collector of the transistor.. VCC is a very important voltage when biasing the transistor because it determines how much the AC signal can be amplified to in the transistor. If VCC is too low, the transistor will not have enough power and the amplified AC signal will come out clipped.
We would like to show you a description here but the site won’t allow us.
vcc electrical meaning vcc and vdd meaning VCC. ( electronics, also VCC) Common Collector Voltage; the positive supply voltage for an integrated circuit containing bipolar junction transistors. ( television) Initialism of Video Compact Cassette.Understanding how to read and follow schematics is an important skill for any electronics engineer. This tutorial should turn you into a fully literate schematic reader! We'll go over all of the fundamental schematic symbols: Then we'll talk about how those symbols are connected on schematics to create a model of a circuit. We'll also go over a .
VDD, VSS, Vcc and Vee in Cadence. meaning of VDD VSS VCC and VEE in electronics. Nowadays it is always used Vdd and Vss to refer to the positive and negative voltage respectively. Vdd is normally was used to be 5V but nowadays is 3.3V or even lower 1.8V or 1.2V. Vss is referred to be zero volts.
VCC: C=circuit means circuit, that is, the voltage connected to the circuit. . be sure to read the electrical parameters clearly. . Vcc comes from the collector power supply voltage, Collector .Today, VCC and VDD are often used interchangeably to represent the positive supply voltage, while VEE and VSS similarly interchangeably denote the negative supply voltage in electronic circuits, showcasing the evolution of terminology shaped by historical implementations and technological advancements. VCC. Positive. NPN - Collector (集电 .
From this website: -. Double letters (cc) refer to power supply voltages. For example, Vee refers to the "emitter" voltage. In CMOS logic, Vss refers to the "source" voltage, and Vdd is the "drain" voltage. Single letters refer to the voltage relative to ground; for example, Vc is the "collector" voltage relative to ground. Vtt - termination voltage- usually a separate supply at Vcc - 2.0V that allows termination with a single resistor rather than a divider. Much more on ECL termination here: Edit: From your information regarding the counter part number and related datasheet: Vtt should be Vcc - 2.0V.
VCC. • VCC is used as the positive supply voltage for circuits using Bipolar Junction Transistors (BJT). • The "C" in "VCC" stands for Collector. • It is commonly believed that the repetition of "C" twice in "VCC" is to distinguish it from the collector voltage (VC). On the collector side of an NPN-type bipolar junction transistor (BJT . VCC measures voltage from the perspective of the common collector terminal of a transistor inside an IC.; VDD references the voltage from between the drain terminals of the transistors forming gates and other structures within an integrated circuit.; So VCC denotes the overall applied positive voltage to an IC or component, while VDD refers to .Discover Electrical Engineering Abbreviations: Dive deeper into a comprehensive list of top-voted Electrical Engineering Acronyms and Abbreviations. Explore VCC Definitions: Discover the complete range of meanings for VCC, beyond just its connections to Electrical Engineering. Expand Your Knowledge: Head to our Home Page to explore .
VBB, VCC, VDD, VEE, VSS, GND. Almost all integrated circuits (ICs) have at least two pins that connect to the power rails of the circuit in which they are installed. These are known as the power-supply pins. However, the labeling of the pins varies by IC family and manufacturer. , but internal design and historical traditions have led to a .
VCC, short for Voltage Common Collector, is a term commonly used in electronics to refer to the power supply voltage in a circuit. It represents the positive supply voltage that is required to operate and power the various components of an electronic device or system. VCC can also be referred to as VDD, which stands for Voltage Drain .
