crank and slotted lever quick return mechanism|Crank And Slotted Lever Quick Return Mechanism : Pilipinas A quick return mechanism is also known as Crank and slotted lever quick return motion mechanism. It consists of 3 turning pairs and one sliding pair as shown below. Links .
Polymarket 2024 Presidential Election Markets Current as of Map Timestamp . This is an electoral map based on the Polymarket prediction market odds for the 2024 presidential election. It will be updated every four hours. Unless there is an exact tie, the toss-up color is not used in this map. The colored gradients are used to show higher .
crank and slotted lever quick return mechanism,Quick Return Mechanism (QRM) is a mechanical assembly to form a reciprocating motion that is so designed to reduce the ideal time required for a .
A diagram and explanation of the working of this mechanism, which is used in shaping machines, slotting machines and rotary internal combustion engines. The link AC is fixed and the driving crank CB revolves about it. . The crank and slotted lever quick return mechanism is inversion of single slider crank chain. This inversion is obtained when link 3 (connecting rod) is fixed. Crank and slotted.crank and slotted lever quick return mechanism Crank and slotted lever quick return motion mechanism/ Theory of machines - YouTube. Edutech Guru Engineering Learning-By Priyanka ma'am. 6.99K subscribers. Subscribed. 182. 9.5K.Do you want to learn how crank and slotted lever quick return motion mechanism works in a simple and clear way? Watch this video to see the animation and explanation of this mechanism, which is .
A quick return mechanism is also known as Crank and slotted lever quick return motion mechanism. It consists of 3 turning pairs and one sliding pair as shown below. Links .
Advantages: Applications of Whitworth quick return mechanism: Parts and Construction: This mechanism consists of the following components: 1] Crank:- The crank rotates with .Crank and slotted lever mechanism is one of the famous mechanisms for quick return motion to obtain reciprocating motion. Key Words: Lever, Link, Quick return .crank and slotted lever quick return mechanism Crank And Slotted Lever Quick Return Mechanism Please support my channel, subscribe and share my videos with friends. My aim is to provide guidance related to concepts of engineering topics
Crank and slotted lever quick return motion mechanism: This mechanism is mostly used in shaping machines, slotting machines and in rotary internal combustion engines. In this mechanism, the link AC (i.e. .
Subject - Kinematics of MachineryVideo Name - Numerical Based on Crank & Slotted lever Quick Return Motion MechanismChapter - Basic of KinematicsFaculty - Pr.
In the below picture shown a Crank and slotted lever mechanism. This mechanism is mostly used in shaping machines, slotting machines and in rotary internal combustion engines. The link AC is fixed and its length is L1, Link CB whose length is L2 is a crank, which rotates 360 degrees about point C with uniform angular velocity. A sliding . Components of a Quick Return Mechanism. The various components of a Quick Return Mechanism are: Crank - The crank is connected to the pinion wheel or motor and rotates with a uniform angular velocity. Slider & Slotted Bar - The slider is pivoted at the end of the crank, allowing free movement into the slotted bar.Its function is to .
The mechanism consists of a slider, crank, fixed link, slotted lever, connecting rod, and ram. The crank is connected to the slider and fixed link. When the cranks start rotating the connecting rod pushes forward and backward the ram. Here the motion is converted into linear motion from rotary motion.
Design, Fabrication and Analysis of Crank and Slotted Lever Quick Return Mechanism. In industry it is always desirable to increase the productivity or reduce the time loss. A beautiful mechanism in which, for the constant input rotation, the forward stroke takes larger time (cutting stroke) than the return stroke (idle stroke). 1.
The crank and slotted lever quick return mechanism convert the rotary motion into reciprocating motion. It is the inversion of a single slider crank chain. . This mechanism is called a slotted lever quick return mechanism and it drives a horizontal ram that reciprocates in the guide ways provided on the top surface of the machine frame. In .
A quick return mechanism is an apparatus to produce a reciprocating motion in which the time taken for travel in return stroke is less than in the forward stroke. It is driven by a circular motion source (typically a motor of some sort) and uses a system of links with three turning pairs and a sliding pair. A quick-return mechanism is a subclass of a slider .
constant angular velocity of the driving crank. Crank and slotted lever mechanism is one of the famous mechanisms for quick return motion to obtain reciprocating motion. Key Words: Lever, Link, Quick return mechanism, Slotted bar. 1. INTRODUCTION When one link is fixed in a mechanism, the chain is called as mechanism. The crank and slotted lever quick return mechanism is inversion of single slider crank chain. This inversion is obtained when link 3 (connecting rod) is fixe. In the below picture shown is the Crank and slotted lever quick return mechanism (Slider and coupler link is not shown), length of the fixed link is L1, length of crank is L2, angle between vertical axis and . In the below picture shown is a crank and slotted lever quick return mechanism. Where crank length is r, fixed link length is 3r, oscillating link length is x for any given crank angle theta, angle between horizontal and oscillating slotted link is phy. Slider and coupler link are ignored in this analysis.Crank And Slotted Lever Quick Return Mechanism The following are the key components of a quick return mechanism: Crank: The crank is attached to the pinion wheel or motor and rotates at a constant angle. . Whitworth devised this system in the 1800s. A slider, crank, fixed link, slotted lever, connecting rod, and ram make up the mechanism. The slider and fixed link are .
This mechanism was invented by Whitworth in the 1800s. The mechanism consists of a slider, crank, fixed link, slotted lever, connecting rod and ram. The crank is connected with the slider and .
Detailed Solution. Concept: A crank and slotted lever quick return motion mechanism convert rotation motion into oscillation (reciprocation) motion. It’s an inversion of a single slider-crank mechanism with connecting rod B being fixed. → in figure. O 1 O 2 → fixed link (connecting rod) O 1 A → crank.

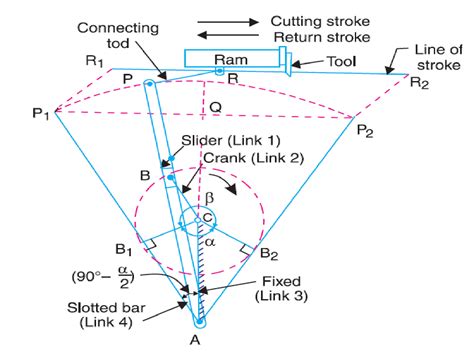

Fig1: Crank and slotted lever quick return motion mechanism. In the extreme positions, AP1 and AP2 are tangential to the circle and the cutting tool is at the end of the stroke. The forward or cutting stroke occurs when the crank rotates from the position CB1 to CB2 (or through an angle β) in the clockwise direction.
